Experience precision with our BP50SA blister sealing machine and elevate your efficiency with the semi-automatic BP90A. It streamlines production by automating paper card placement, turntable rotation, and unloading, reducing operator effort.

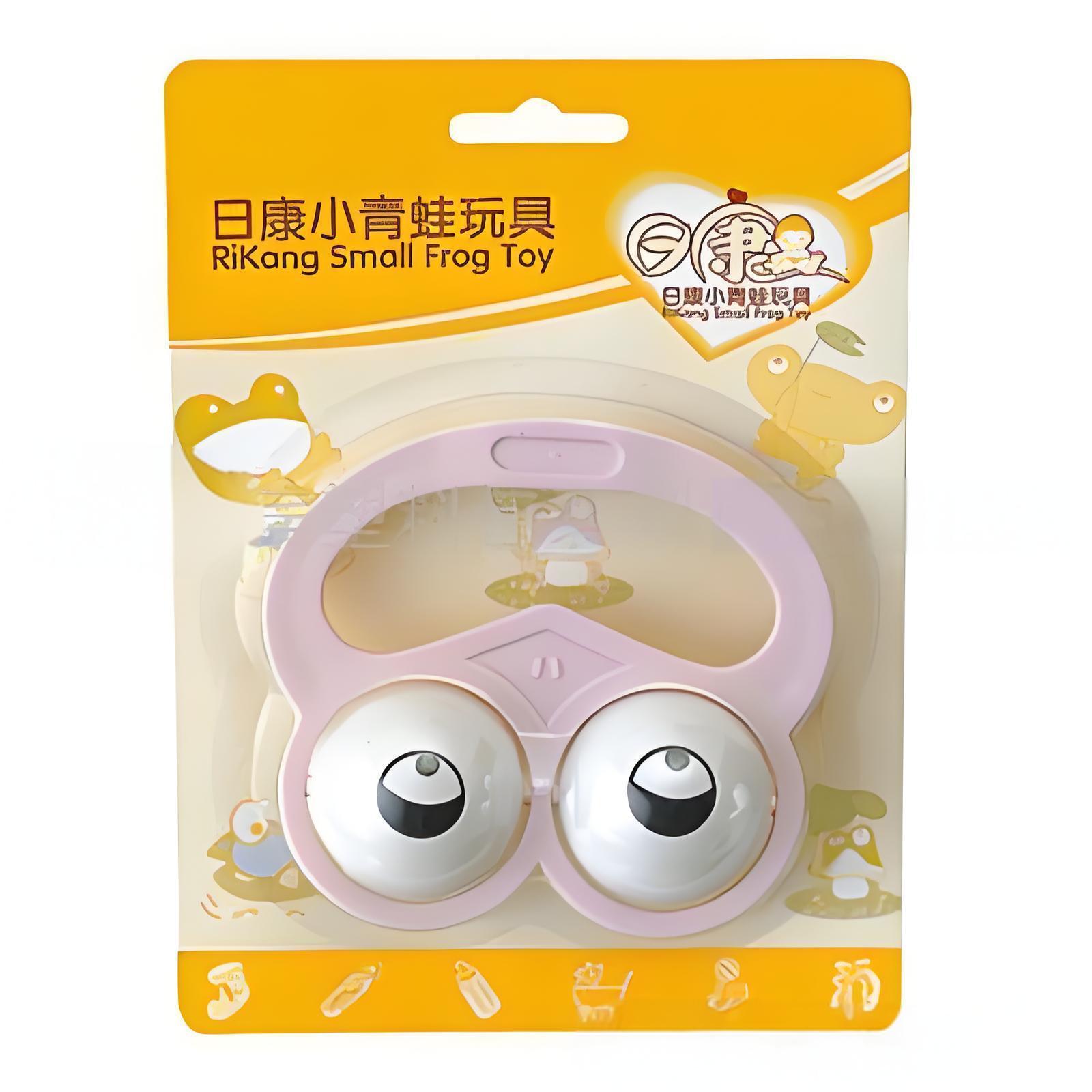

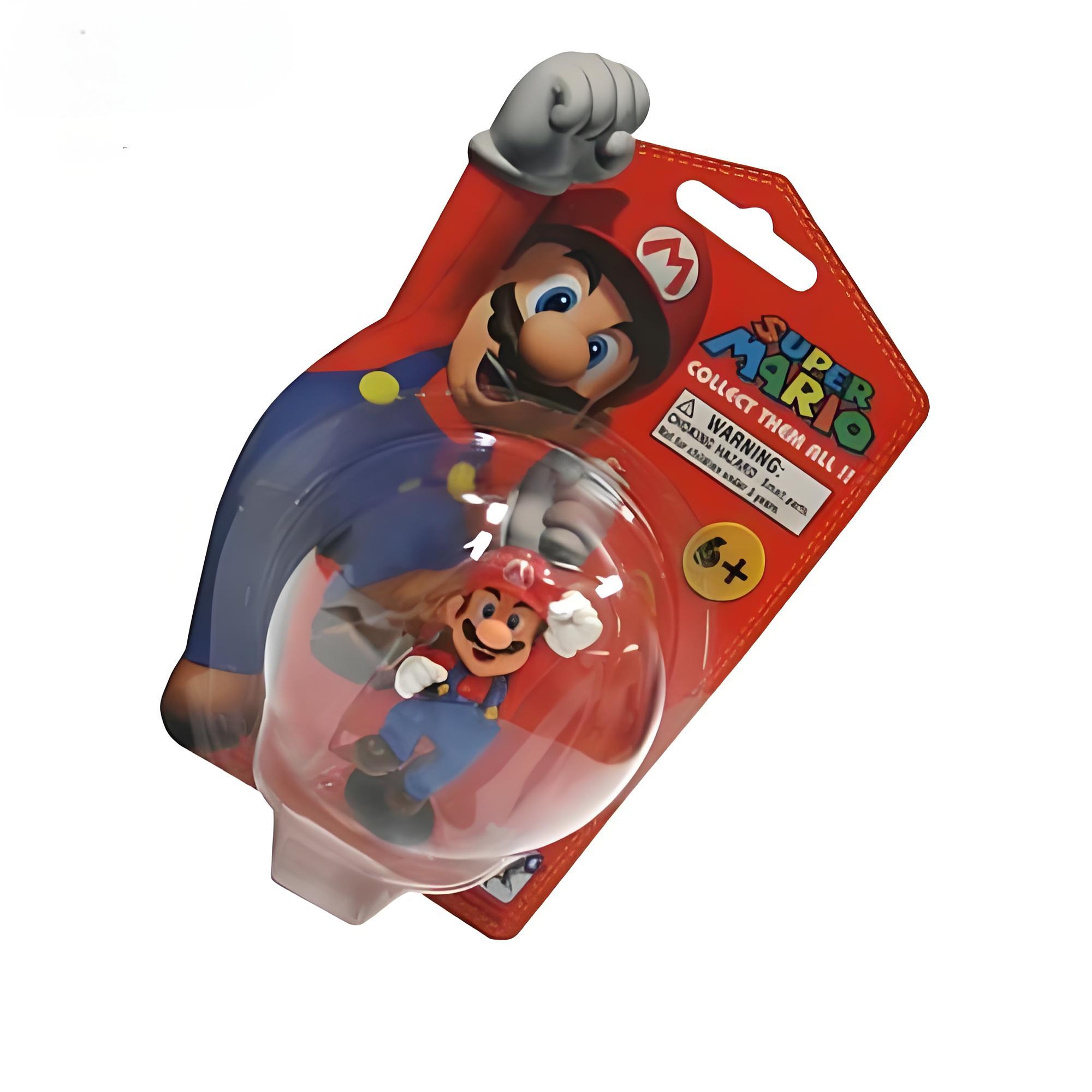

Product Description:The vacuum forming sealing machine is mainly used to heat seal vacuum forming blister packs (such as PVC, PET and other materials) with cover materials (such as aluminum foil, card
The BP90A data:
|
Model |
BP90-A |
|
Type of operation |
Auto |
|
Work station |
4?units |
|
Hearer Style |
Upper ?or ?Down |
|
Size of slide plate |
500×350mm |
|
Size of press plate |
500×500mm |
|
Press stroke |
200mm |
|
Rotary table |
PP ??1200mm |
|
Power? |
5KW |
|
Production speed |
7~8 S/time |
|
Machine size |
1700×1600×1500mm 750×600×1600mm |
|
Machine weight |
600Kg |
?
The main component:? ? ? ? ? ? ? ? ? ? ? ?
PLC+touchscreen:"Xijie?"China? +"MCGS"China? ? ? ? ? ? ?
AC contactor:?"Schneider" France ????????????????
Cylinder: “Airtac”?Taiwan
Solenoid valve:?"Airtac" Taiwan
Air treatment: “Airtac”?Taiwan
?
?



?



?
Attribute
heating area:
working mode:
heating method:
Voltage:
style:
