The BP60 is a dual-station pneumatic medical device heat sealing and packaging machine. The whole machine adopts a four-column balanced design, ensuring high fit between the upper and lower molds and good heat sealing effect. The push disc adopts pneumatic push, reducing the labor intensity of the employees.

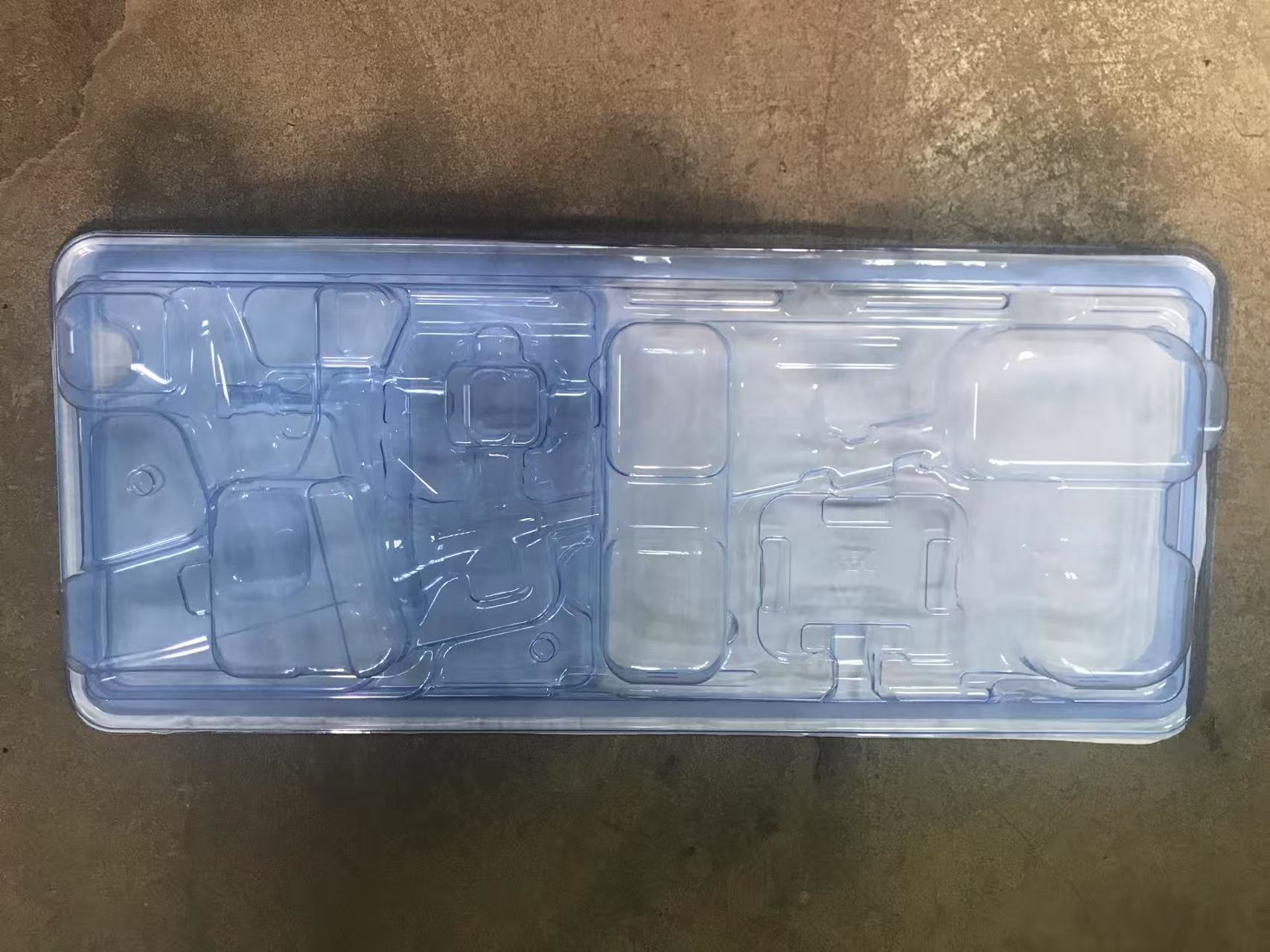

Product Description：The vacuum forming sealing machine is mainly used to heat seal vacuum forming blister packs (such as PVC, PET and other materials) with cover materials (such as aluminum foil, card
|
Model |
BP-60 |
|
Scope of application |
Blister and Tyvek card sealing |
|
Type of operation |
Auto |
|
Work station |
2units |
|
Power style |
Pneumatic |
|
Heater Style |
Down |
|
Mold |
2 down mold and 1 upper mold |
|
Size of slide plate |
500×400mm |
|
Size of press plate |
500×380mm |
|
Press stroke |
150mm |
|
Power consumptions |
4KW |
|
Machine size |
1650×600×1600mm |
|
Pressure utilization |
0.1m3/min |
|
Machine weight |
250Kg |
The main component:??? ? ? ? ? ? ? ? ? ?
PLC :"Xingjie" China? or "Mitsubishi" Japan
Touchscreen: "MCGS" China
Intermediate relay: "Omron" Janpan? ? ? ? ? ? ??
AC contactor:?"Schneider" France ????????????????
Cylinder: “Airtac”?Taiwan
Solenoid valve:?"Airtac" Taiwan
Air treatment: “Airtac”?Taiwan
The BP60 is a dual-station pneumatic medical device heat sealing and packaging machine. The whole machine adopts a four-column balanced design, ensuring high fit between the upper and lower molds and good heat sealing effect. The push disc adopts pneumatic push, reducing the labor intensity of the employees.
?
?
?

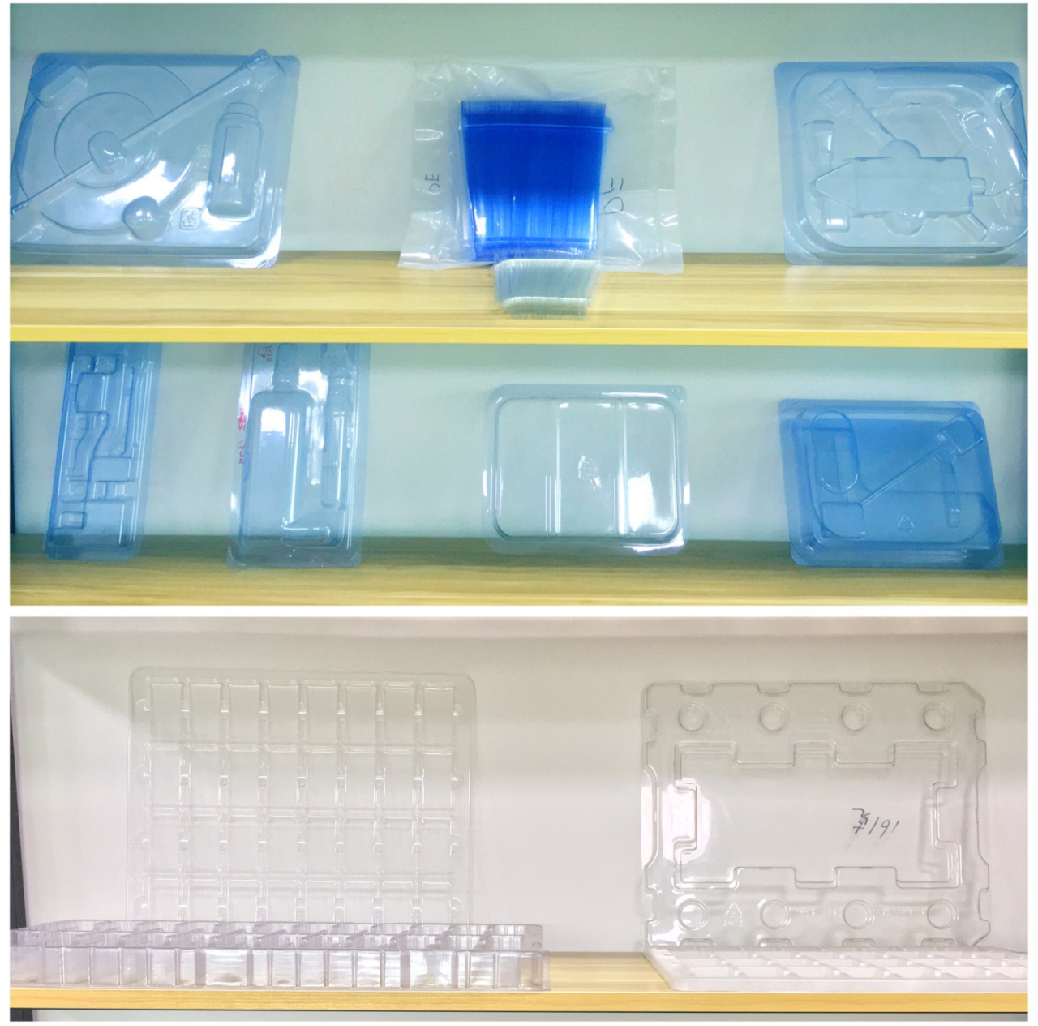

?At the same time, we also offer full industrial chain consultation, such as the production of medical blister covers and the supply of Tyvek?paper, etc.
 |
 |
?
