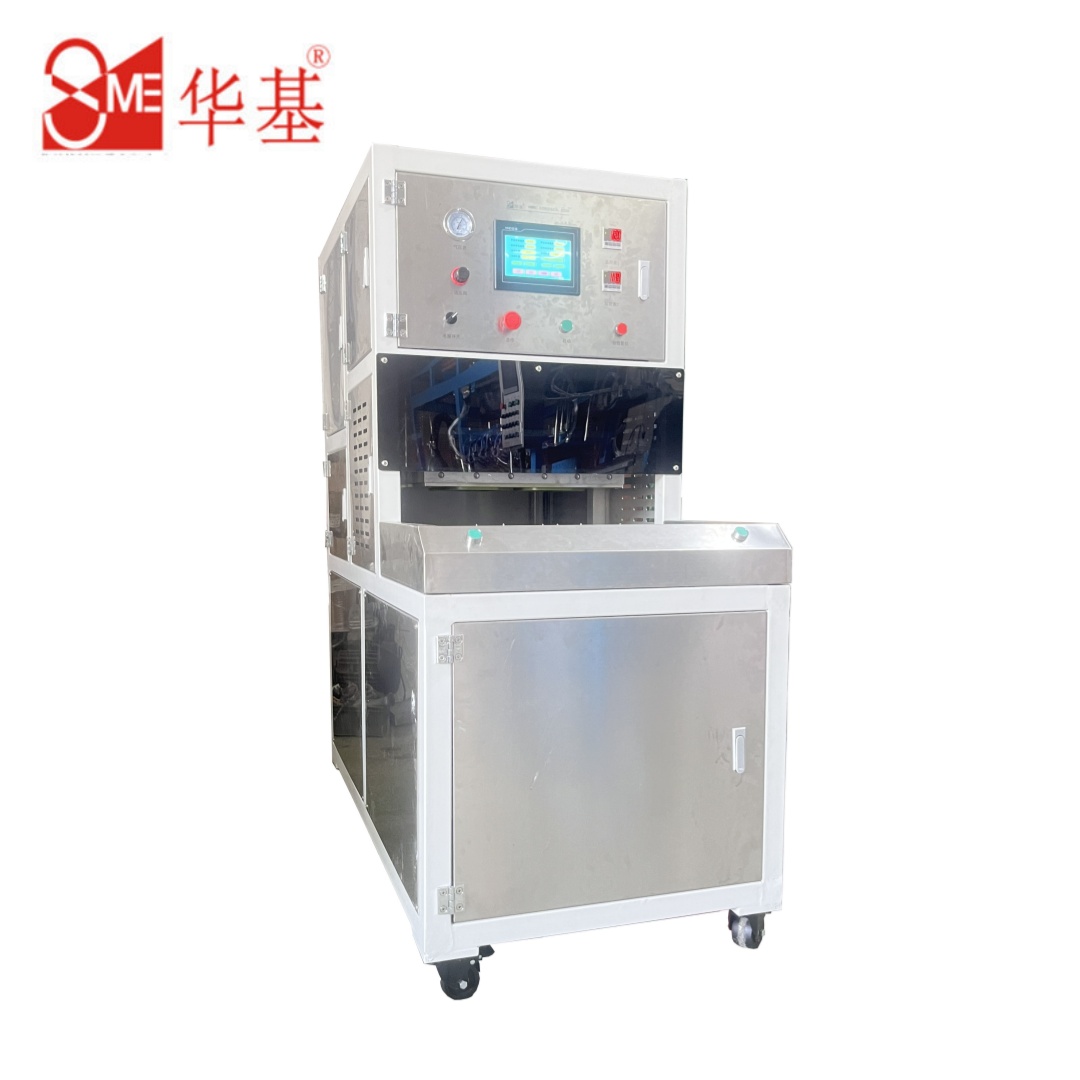

The BP70CA is a single-station pneumatic medical device heat sealing packaging machine with cooling. The whole machine adopts a four-column balanced design. The upper and lower molds have a high degree of fit and will not deform after heat sealing.
Product Description:The vacuum forming sealing machine is mainly used to heat seal vacuum forming blister packs (such as PVC, PET and other materials) with cover materials (such as aluminum foil, card
|
Model |
BP-70CA |
|
Scope of application |
Blister and Tyvek card sealing |
|
Type of operation |
Auto |
|
Work station |
1units |
|
Power style |
Pneumatic |
|
Heater Style |
Down |
|
Mold |
1 down mold and 1 upper mold |
|
Size of slide plate |
500×400mm |
|
Size of press plate |
500×400mm |
|
Press stroke |
200mm |
|
Power consumptions |
2.4KW |
|
Machine size |
1350×700×1600mm |
|
Pressure utilization |
0.1m3/min |
|
Machine weight |
650Kg |
The main component:??? ? ? ? ? ? ? ? ? ?
PLC :"Xingjie" China? or "Mitsubishi" Japan
Touchscreen: "MCGS" China
Intermediate relay: "Omron" Janpan? ? ? ? ? ? ??
AC contactor:?"Schneider" France ????????????????
Cylinder: “Airtac”?Taiwan
Solenoid valve:?"Airtac" Taiwan
Air treatment: “Airtac”?Taiwan
?
The BP70CA is a single-station pneumatic medical device heat sealing packaging machine with cooling. The whole machine adopts a four-column balanced design. The upper and lower molds have a high degree of fit and will not deform after heat sealing.
?
?

?


?At the same time, we also offer full industrial chain consultation, such as the production of medical blister covers and the supply of Tyvek?paper, etc.



![]() |
![]() |
?
Attribute
heating area:
working mode:
heating method:
Voltage:
style:
station:
Frame and sheet metal:
