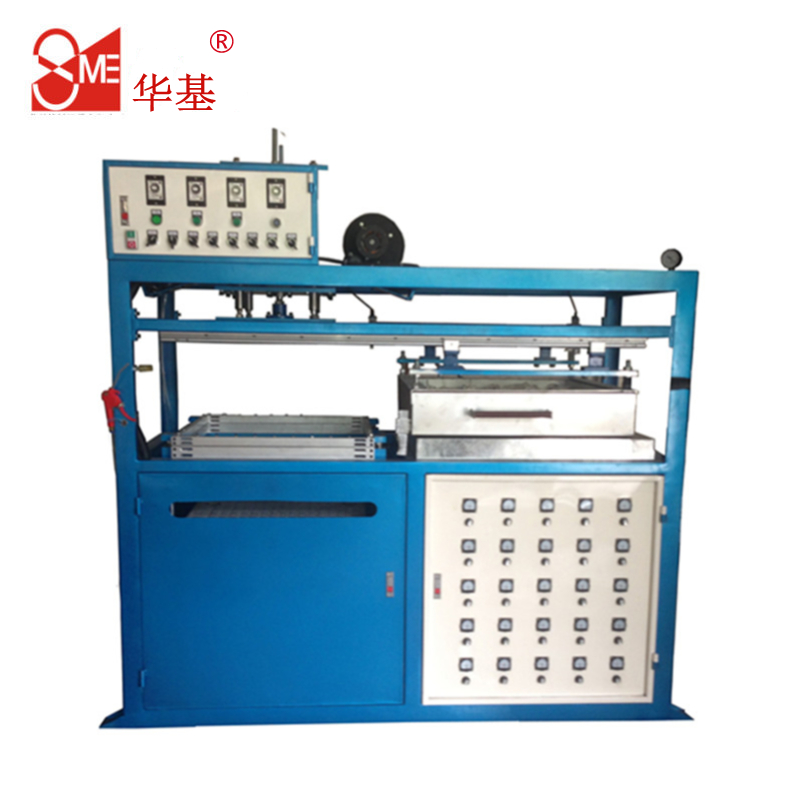

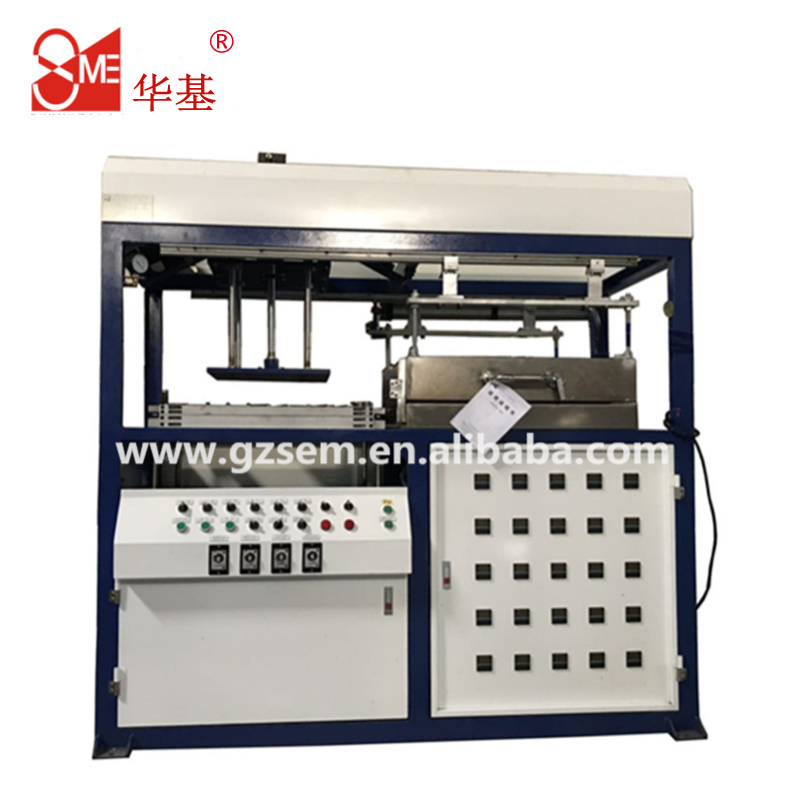

SVF-SA is a small vacuum forming machine controlled by PLC. The temperature is controlled by a centralized temperature control module, and the temperature can be adjusted with one click on the touch screen, which is more convenient and faster. The stability, pressure, performance and vacuum degree of this machine are all higher than those of ordinary machines.
It is not only suitable for personalized customization, but also for small-batch production. It is also a device suitable for the vacuum forming of thin and thick sheets.
Adapatation |
Advantages |
|
Many styles, ?few quantities, suitable for laboratories, testing rooms or personal use |
easy to operate occupies a small area, price low suitable for both thick and thin sheets |
?
?
?
?
The SVF-8 Data:?
?
|
Model |
SVF-8 |
|
Forming length?????????????? |
610mm(Can be adjusted) |
|
Forming width??????????????? |
610mm(Can be adjusted) |
|
Forming height?????????????? |
150mm |
|
Capacity???????????????????? |
20-30set/time |
|
Power supply??????????????? |
380VAC/3phase/50HZ |
|
Power consumption |
11KW |
|
Heater consumption |
400W×25pcs |
|
Air pressure |
0.5-0.7Mpa |
|
Suggest air compressor? |
3HP |
|
Vacuum pump? |
40m3/H |
|
Machine size(L×W×H) |
1600×1000×2100mm |
|
Machine weight? |
1000Kg |
?

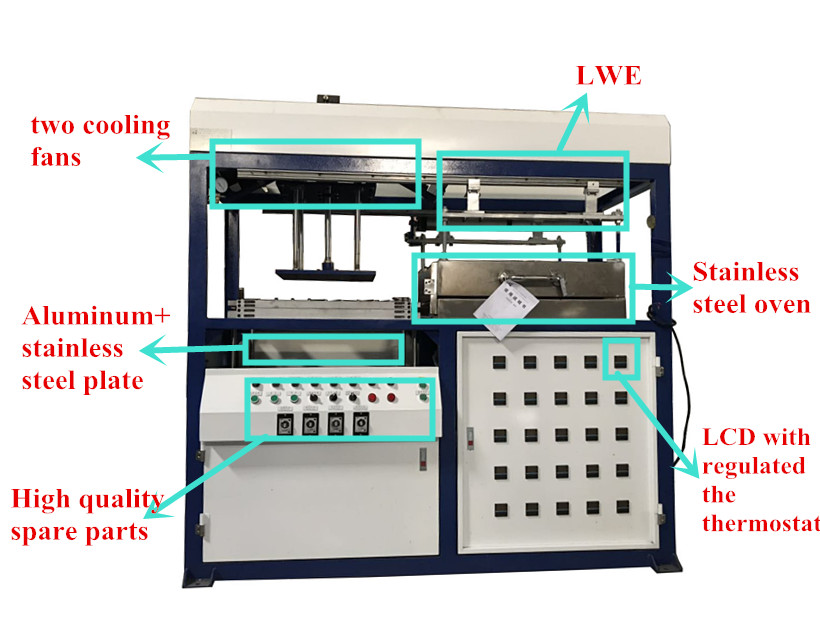

The main component:
Timer and relay:?"CKC" Taiwan? ?
PLC+Touchscreen: "Xingjie" China+"MCGS" China? ?or "Mistubishi" Japan+"MCGS" China
Pneumatic components: "Airtac" Taiwan
Infrared ceramic heater:?"SME" China
Temperature control: ?stepless fine-tuning China
Vacuum pump:?”DLT” China
?
?
?
?
